Geordi Non Return Valve Details:

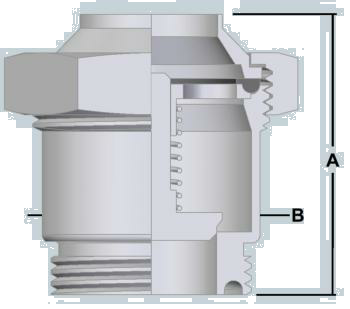

Geordi Spring Plate Non Return Valve

SIZE

A

B

25mm

38mm

50mm

63mm

76mm

101mm

150mm

87

96

101

103

114

135

200

53

66

78

98

117

142

203

All Stainless Construction coupled together with Standard Flat Faced EPDM Gasket and Hex Milk Nut.

 All wetted parts: 316

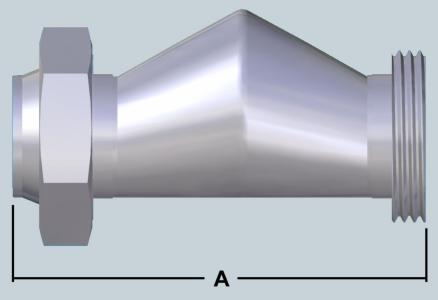

Geordi Inline Ball Non Return Valve

SIZE

A

76mm

100mm

125mm

150mm

200mm

250mm

300mm

150

167

169

175

196

267

Standard Ball: Nylon (available in Polyethylene or Teflon upon request)

Standard EPDM Flat Faced Seal & Nut coupling

Crevice free construction

Seat Material: Teflon

Standard O'Rings - Buna/Nitrile

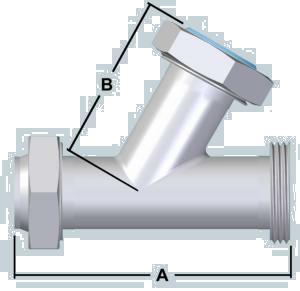

Geordi Y Ball Non Return Valve

SIZE

A

B

25mm

38mm

50mm

63mm

76mm

100mm

150mm

122

162

171

193

221

245

72

90

113

115

139

169

Standard Ball: Nylon (available in Polyethylene or Teflon on request)

Standard EPDM Flat Faced Seal & Nut coupling

Crevice free construction

Seat Material: Teflon

Standard O'Rings - Buna/Nitrile

Standard Lens: Polycarbonate

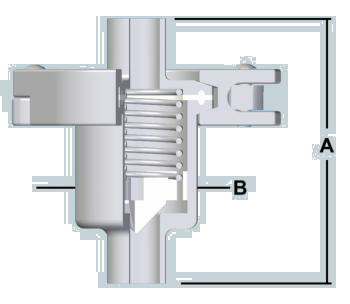

Geordi 18mm B/Weld NRV

Standard Clack: Teflon

Standard Ferrule Body & Clamp coupling

Standard Gasket - EPDM

Available Ends: Butt Weld to suit 19mm Tube &

 Ferrule Ends to suit 18mm or 12mm Ferrules



Size 18mm

A

B

Butt Weld

Ferrule Ends

87

89

40

40
