3A Fitting Dimensions:

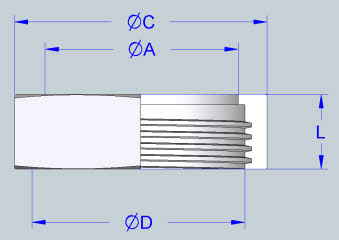

3A LINER DIMENSIONS

SIZE A

B

C

D

L

25mm

38mm

50mm

63mm

76mm

101mm

22.6

35.6

48.6

60.3

72.9

97.6

29.5

42.6

55.7

68.8

81.9

108.1

33.3

46.8

60.3

73.8

87.3

114.3

34.9

38.1

38.1

44.5

44.5

44.5

Standard Material: 316

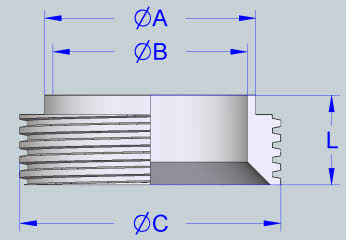

3A MALE PART DIMENSIONS

SIZE A

B

C

D

L

25.4

38.1

50.8

63.5

76.2

101.6

22.6

35.6

48.6

60.3

72.9

97.6

37.1

50.7

64.2

77.7

91.2

119.3

34.9

38.1

38.1

44.5

44.5

44.5

8

8

8

8

8

6
Standard Material: 316

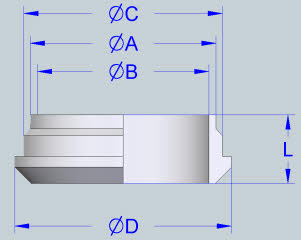

3A HEX NUT DIMENSIONS

SIZE

A

B

C

L

TPI

25.4

38.1

50.8

63.5

76.2

101.6

30.3

43.4

56.5

69.6

82.7

108.9

38

51.5

65

78.6

92.1

120.1

46

61.1

76.1

91.3

106.4

137.6


8

8

8

8

8

6
Standard Material: 304
