38mm

50mm

63mm

76mm

100mm

150mm

50

50

50

84

20

20

20

96

109

126

141

161

230

Working Pressure: 10Bar

Vacuum: Min 4000Pa

Wetted Surfaces: Ra 0.8um.

Valve material: AISI 316

Seal Material options: Silicone(std), EPDM, Viton, Teflon, Nitrile & Hypalone.

Straight Forward engineering - High quality seal clamped body halves. The aerodynamic design of the disc produces an extremely low resistance to flow - this also ensures perfect cleaning by simple flushing (cleaning in place). The smooth flow through the valve prevents deposits due to product residue. Each manually operated butterfly valve can be fitted with pneumatic actuator with various spring/air configurations. A variety of high quality seal material options catering for a large range of chemical and temperature environments.

38mm

50mm

63mm

76mm

100mm

150mm

76

80

80

82

90

80

18

18

18

18

18

36

85

105

112

125

157

212

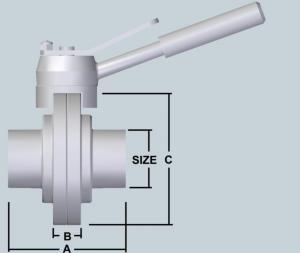

Geordi Butterfly Valves are obtained from hot forged & heat treated pieces in AISI 316/L material. They are assembled together with a hollow screw head, alternated to allow the ability to interchange with various standardizations. Sizes range from 1"(25mm) to 6"(152mm). They resist to 15Bar working pressure and come complete with an AISI 316 grade pressed seal plug worked on all the surface and grinded on rotating parts and are supplied with 2 anti seizing Telfon sleeves. The standard seal is made from silicone elastomer, however different materials are available upon request. These valves can be supplied with manual configurations or pneumatic actuators in accordance with your requirements. Standard finish is polished outside and satin inside.
