Stainless steel Non Return Valves Stainless Steel Check Valves |
|
|
||||||
|
|||||||
| |
|||||||
|

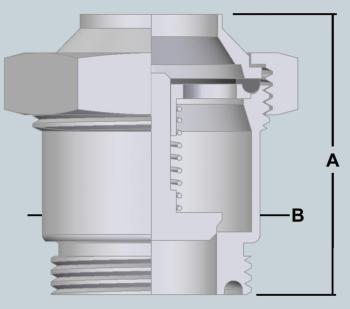

Geordi Spring Plate Non Return Valve |
|
|||
|
|
Size |
A | B | ||
|
25mm 38mm 50mm63mm 76mm101mm 150mm |
87 96 101103 114135 200 |
53 66 7898 117142 203 |
|||
|
All Stainless Construction coupled together with Standard Flat Faced EPDM Gasket and Hex Milk Nut. All wetted parts: 316
150mm size is of different construction - B/Weld Ends & Ferrule Coupling
|
|||||
|
|
||||
|
|

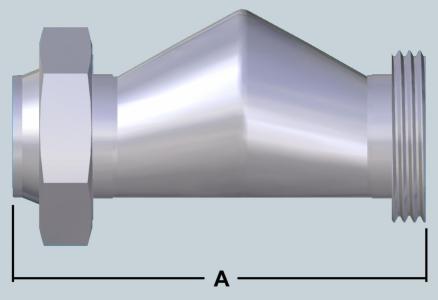

Geordi Inline Ball Non Return Valve |
|
||
|
|
Size |
A | ||
|
25mm 38mm 50mm63mm 76mm100mm 150mm |
150 167 169175 216267 |
|||
|
Standard Ball: Nylon (available in Polyethylene or Teflon upon request) Standard EPDM Flat Faced Seal & Nut coupling Crevice free construction Seat Material: Teflon Standard O'Rings - Buna/Nitrile |
||||
|
|
|
|||
|
|

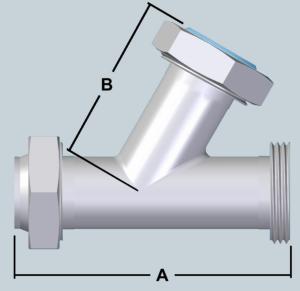

Geordi Y Ball Non Return Valve |
|
|||
|
|
Size |
A | B | ||
|
25mm 38mm 50mm 63mm 76mm 100mm 150mm |
122 162 171 193 221 245 |
72 90 113 115 139 169 |
|||
|
Standard Ball: Nylon (available in Polyethylene or Teflon on request) Standard EPDM Flat Faced Seal & Nut coupling Crevice free construction Seat Material: Teflon Standard O'Rings - Buna/Nitrile Standard Lens: Polycarbonate |
|||||
|
|
|
||||
|
|

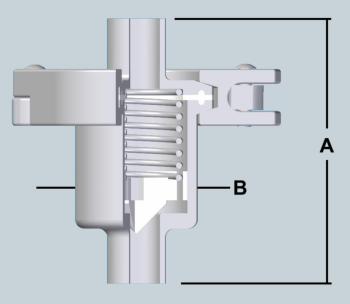

Geordi Small Butt Weld Non Return Valve |
|
|||
|
|
Size 18mm |
A | B | ||
|
Butt Weld Ferrule Ends |
87 89 |
40 40 |
|||
|
Standard Clack: Teflon Standard Ferrule Body & Clamp coupling Standard Gasket - EPDM Available Ends: Butt Weld to suit 19mm Tube & Ferrule Ends to suit 18mm or 12mm Ferrules
|
|||||
|
|
|
||||
