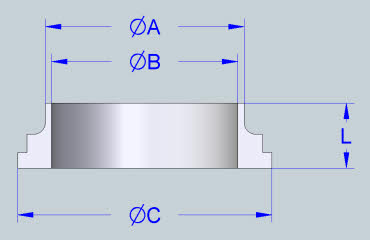

SMS Liner Dimensions |
|
|||||
|
|
Size |
A | B | C | L | ||
|
25.4 38.1 50.863.5 76.2101.6 101.6 |
25.4 38 51 63.5 76.1 102 101.6
|
22.5 35.5 48.5 60.5 72.9 97.6 97.6
|
35.5 55 65 80 93 118 127 |
15 16 17 17 19 30 12 |
|||
|
101.6 Large size not stocked Standard Material: 316 |
|||||||
|
|
||||||
|
|

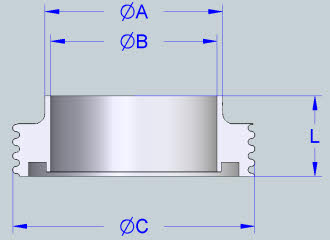

SMS Male Part |
|
|||||
|
|
Size A |
B | C | L | TPI | ||
|
25.4 38.1 50.8 63.5 76.2 101.6 101.6 |
22.5 35.5 48.5 60.5 72.9 97.6 97.6 |
40 60 70 85 98 125 132 |
19 23 23 27 27 30 35 |
6 6 6 6 6 4 6 |
|||
|
101.6
Large size not stocked Standard Material: 316
|
|||||||
|
|
|
||||||
|
|

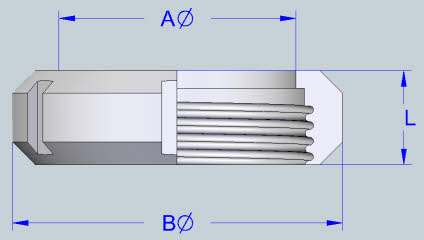

SMS Slotted Nut |
|
|||||
|
|
Size |
A | B | L | TPI | ||
|
25.4 38.1 50.8 63.5 76.2 101.6 101.6 |
32 48 60.5 74 87 113 117 |
51 74 84 100 114 138 154 |
20 25 26 30 32 31 45 |
6 6 6 6 6 4 6 |
|||
|
101.6 Large
size not stocked Standard Material: 304 |
|||||||
|
|
|
||||||
|
|

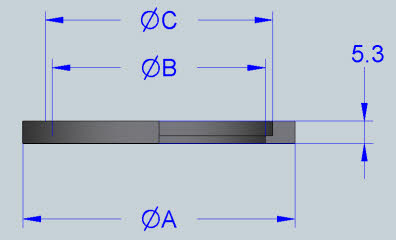

SMS Gaskets |
|
||||
|
|
Size |
A | B | C | ||
|
25mm 38mm 50mm 63mm 76mm100mm
|
38.1 47.8 60.8 73.3 85,8 115.7
|
22.8 35.8 48.8 61 73.4 100.5 |
25.1 38.1 51.1 63.6 76.1 104 |
|||
|
|
|
|||||
