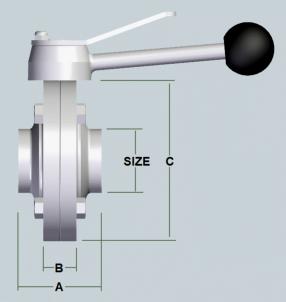

Approximate Dimensions for Sudmo Butterfly Valve |
|
||||
 |
SIZE | A | B | C | ||
|
25mm 38mm 50mm 63mm 76mm 100mm 150mm |
50 50 50 50 84 |
20 20 20 20
|
84 96 109 126 141 161 230 |
|||
|
Working Pressure: 10Bar Vacuum: Min 4000Pa Wetted Surfaces: Ra 0.8um. Valve material: AISI 316 Seal Material options: Silicone(std), EPDM, Viton, Teflon, Nitrile & Hypalone. |
||||||
|
Straight Forward engineering - High quality seal clamped body halves. The aerodynamic design of the disc produces an extremely low resistance to flow - this also ensures perfect cleaning by simple flushing (cleaning in place). The smooth flow through the valve prevents deposits due to product residue. Each manually operated butterfly valve can be fitted with pneumatic actuator with various spring/air configurations. A variety of high quality seal material options catering for a large range of chemical and temperature environments. |
||||||
|
|
|||||
