BSM Liner Dimensions




Size

 A B C D
25.4

38.1

50.8

63.5

76.2

101.6

152.4		 41.3

54

66.7

79.4

92.1

117.5

168.5		 19

19

19

19

19

19

24		 4.2

4.2

4.2

4.2

4.2

4.2

 22.2

34.9

47.6

60.3

73.0

98.4

149.2



Standard Material: 316



Also Available in 2205/2RK65 Grades

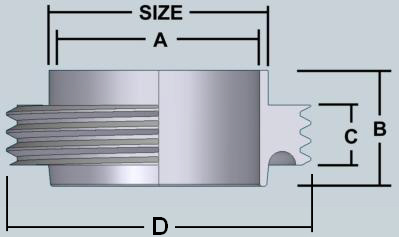

BSM Male Part


Size

 A B C D
25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

 22.2

34.9

47.6

60.3

73.0

98.4

123.8

149.2

 27

27

27

27

27

27

27

27

 14

14

14

14

14

14

14

14

 45.7

58.4

72.6

85.3

98

123.4

147.8

174.2


Standard Material: 316



Also Available in 2205/2RK65 Grades








BSM Hex Nut


Size

 A B C
25mm

38mm

50mm

63mm

76mm

100mm

127mm

152mm

 51

65

79

92

105

130

155

185

 33

46

59

71

84

110

135

160

 22

22

22

22

22

22

22

22


Standard Material: 304

Also Available in 316








BSM O'Rings


Size

 A
25mm

38mm

50mm

63mm

76mm

100mm

127mm

152mm

 33.3

46.0

58.7

71.4

84.1

109.5

134.9

160.3


Available in various different materials see product pages 1 & 2.
