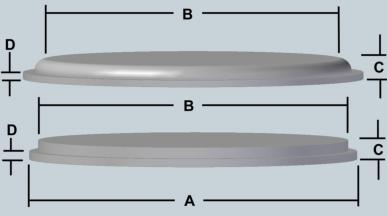

BSM Blank Cap Dimensions |
|
|||
|
|
SIZE |
A | B | ||
|
25mm 38mm 50mm 63mm 76mm 100mm 127mm 150mm |
41.3 54 66.7 79.4 92.1 117.5 142.9 168.3 |
32.5 45.2 57.9 70.6 83.3 108.7 134.1 159.5 |
|||
|
C: 7.75 - 9.0mm D: 2.5 - 4.0mm Standard Material: 316
|
|||||
|
|
||||
