BSM Fitting Dimensions:

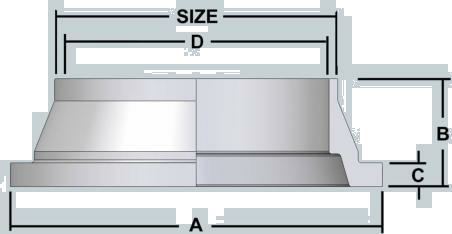

BSM LINER DIMENSIONS

SIZE

A

B

C

D

25mm

38mm

50mm

63mm

76mm

101mm

152mm

41.3

54

66.7

79.4

92.1

117.5

168.5

19

19

19

19

19

19

24

4.2

4.2

4.2

4.2

4.2

4.2

22.2

34.9

47.6

60.3

73.0

98.4

149.2

Standard Material: 316
Also Available in 2205/2RK65 Grades

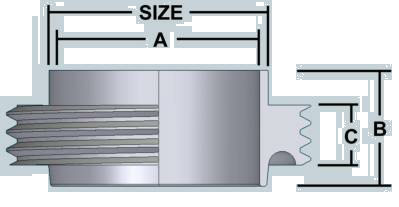

BSM MALE PART DIMENSIONS

SIZE

A

B

C

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

22.2

34.9

47.6

60.3

73.0

98.4

123.8

149.2

27

27

27

27

27

27

27

27

14

14

14

14

14

14

14

14
Standard Material: 316
Also Available in 2205/2RK65 Grades

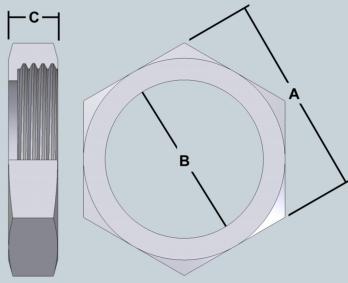

BSM HEX NUT DIMENSIONS

SIZE

A

B

C

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

51

65

79

92

105

130

155

185

33

46

59

71

84

110

135

160

22

22

22

22

22

22

22

22
Standard Material: 304
 Also Available in 316

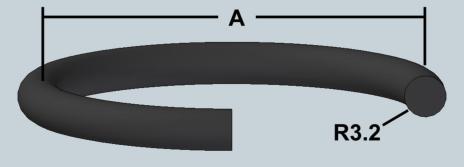

BSM O’RING DIMENSIONS

SIZE

A

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

33.3

46.0

58.7

71.4

84.1

109.5

134.9

160.3
Available in various different materials
 see product pages 1 & 2.

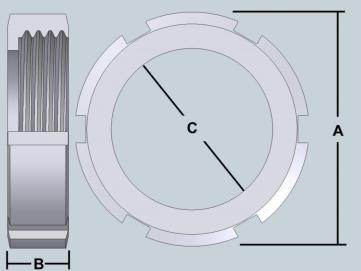

BSM RND NUT DIMENSIONS

SIZE

A

B

C

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

59

74

86

98

112

139

173

196

22

22

22

22

22

22

22

22

33.5

46

58.7

71.4

84

109

136

168
Standard Material: 304

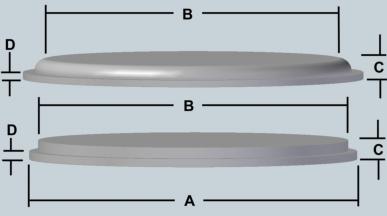

BSM BLANK CAP DIMS

SIZE

A

B

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

41.3

54

66.7

79.4

92.1

117.5

142.9

168.3

232.5

45.2

57.9

70.6

83.3

108.7

134.1

159.5
C: 7.75 - 9.0mm
 D: 2.5 - 4.0mm
 Standard Material: 316

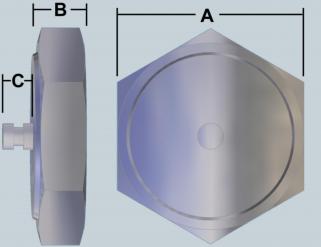

BSM BLANK CAP DIMS

SIZE

A

B

25.4

38.1

50.8

63.5

76.2

101.6

127

152.4

51

65

80

92

105

130

158

185

24

24

25.2

26.4

26.4

25

29

28.4
C: 7 to 9.5mm
 Standard Material: 304
