DIN Fitting Dimensions:

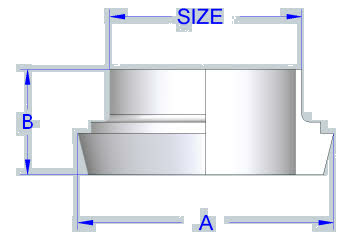

DIN LINER DIMENSIONS

SIZE

A

B

12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

22.2

28

36

44

50

56

68

86

100

121

17

17

18

22

25

26

28

32

37

44
Standard Material: 316

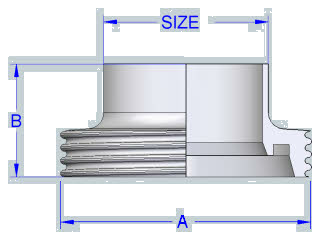

DIN MALE PART DIMENSIONS

SIZE

A

B

TPI

12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

27.5

34

43.5

52

58

65

78

95

110

130

21

21

24

29

32

33

35

40

45

54

8

8

6

6

6

6

6

6

4

4
Standard Material: 316

DIN NUT DIMENSIONS

SIZE

A

B

SLOTS

12.7

19.1

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

18

18

21

21

21

21

22

25

29

31

38

44

54

63

70

78

92

112

127

148

4

4

4

4

4

4

4

6

6

6
Standard Material: 316

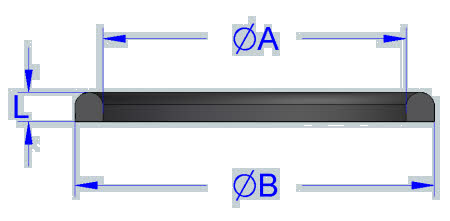

DIN SEAL DIMENSIONS

SIZE

A

B

C

25.4

31.8

38.1

50.8

63.5

76.2

101.6

30

36

42

54

71

85

104

40

46

52

64

81

95

114

5

5

5

5

5

5

6
