Flat Faced couplings/fittings/unions are now the standard hygienic option used in the food and dairy industries.
Also called BSM modified or BSM lipped removed, they offer a host of advantages over other coupling types including no crevices, easy access, compatibility and range of gasket materials.
|

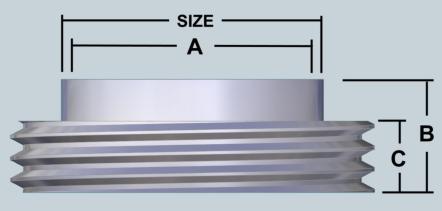

Flat Face Male Part |
|
|||||
|
|
Size |
A | B | C |
Thread OD |
||
|
25.4 38.1 50.863.5 76.2101.6 152.4 |
22.2 34.9 47.660.3 7398.4 149.2 |
19 19 1919 1919 |
14 14 1414 1414 |
45.2 57.9 72.1 84.4 97.5 122.9 173.3 |
|||
|
Standard Material: 316 Also Available in 2205/2RK65 Grades
|
|||||||
|
|
||||||
