IDF Fitting Dimensions:

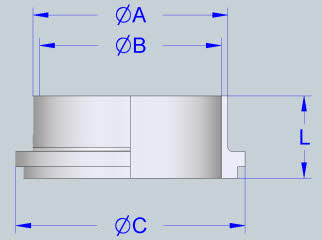

IDF Liner Dimensions

SIZE A

B

C

D

25mm

38mm

50mm

63mm

76mm

101mm

22.6

35.6

48.6

60.3

72.9

97.6

33.8

47

60.5

74

87.5

114.1

21.5

21.5

21.5

21.5

21.5

21.5
Standard Material: 316

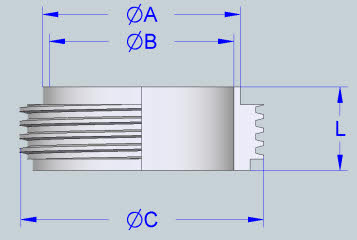

IDF MALE PART DIMENSIONS

SIZE A

B

C

D

L

25.4

38.1

50.8

63.5

76.2

101.6

22.6

35.6

48.6

60.3

72.9

97.6

37.1

50.7

64.2

77.8

91.2

125.9

21.5

21.5

21.5

21.5

21.5

21.5

8

8

8

8

8

6
Standard Material: 316

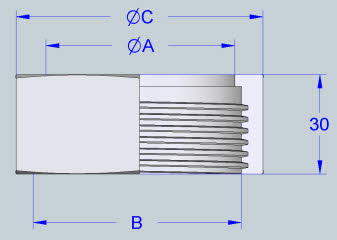

IDF HEX NUT DIMENSIONS

SIZE

A

B

C

L

TPI

25.4

38.1

50.8

63.5

76.2

101.6

30.5

43.5

57

70.7

83.3

110

34.3

47.9

61.4

74.9

88.4

122

46

60

75

90

106

133

30

30

30

30

30

35

8

8

8

8

8

6
Standard Material: 304

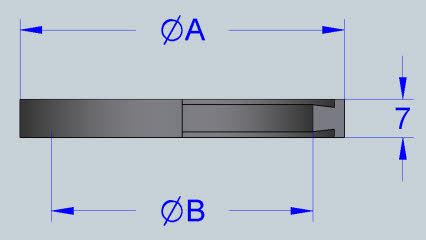

IDF GASKET DIMENSIONS

SIZE

A

B

25.4

38.1

50.8

63.5

76.2

101.6

32.5

46

59.5

73.2

86.5

113

23

36

49

60.7

73.2

98
Standard Material: EPDM
