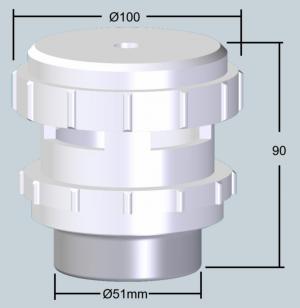

Safety Vent |
|
|
 |
Safety Vent Protects from both pressure and vacuum.
Automatic Action From: Overpressure 0.002 bar / Underpressure 0.005 bar Materials: Plastic resistant to alimentary corrosion / Cont. working temp 70°C. Other components: Stainless Steel. Example to Fill: Decuple-Protection Ratio 568,700 ltr Air / 56,000 ltr Liquid Example to Empty: Decuple-protection Ratio 113,400 ltr Air / 56,000 ltr Liquid
(Tank with Flux 2m/sec through a diameter section of 100mm with capacity of "Maximal Load Pressure" of 0.5Kg/cm? over pressure and 0.01 Kg/cm² under pressure).
|
||
|
|
||
