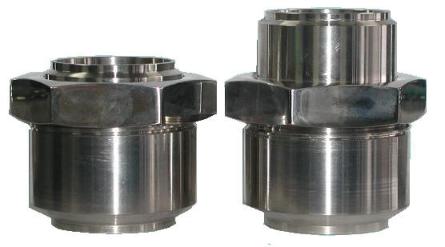

Geordi Short Expansion Joints |
|
||||
|
|

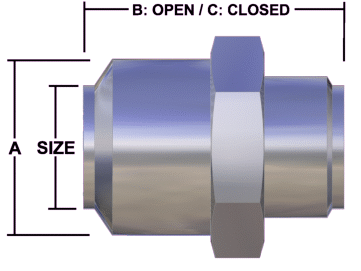

Size |
A | B | C | ||
|
25mm 38mm 50mm63mm 76mm101mm 150mm |
45 60 7385.5 100124 |
107 107 107107 107121 |
83 83 8383 8389 |
|||
|
The Geordi short expansion joints have been developed to be connected inline to allow for small fluctuations in line expansion or to provide the capability to adjust the line position to install and remove tight inline components.
Standard O'rings: Nitrile Other O'Ring Materials available on request. Nut: Std Milk/Food Nut |
||||||
|
|
|||||
