T/C Fitting Dimensions:

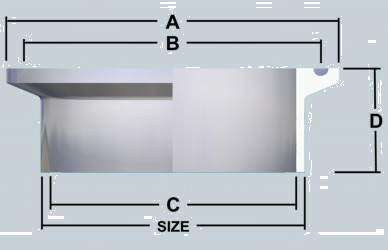

FERRULE DIMENSIONS

SIZE

A

B

C

D

D (ext)

E

12.7

19.1

25.4

31.8

38.1

50.8

63.5

76.2

101.6

152.4

203.2

254

304.8

25.1

25.1

50.5

50.5

50.5

64.0

77.5

91.0

119.0

166.1

217.5

268.5

319.5

20.0

20.0

43.5

43.5

43.5

56.5

70.5

83.5

110.0

157.0

207.2


308.8

9.5

15.9

22.2

28.6

34.9

47.6

60.3

73

97.6

148.4

199.2

250

300.8

21

21

21

21

21

21

21

21

21

27

29

29

29

40

40

40

40

40

40

40

40

40

-

-

-

-

3.2

3.2

2.85

2.85

2.85

2.85

2.85

2.85

2.85

5.0

5.0

5.0

5.0
Standard Material: 316

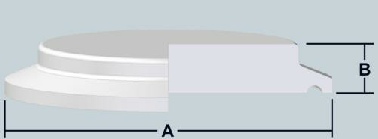

Ferrule Cap Dimensions

SIZE

A

B

12mm

18mm

25mm

31mm

38mm

50mm

63mm

76mm

101mm

150mm

200mm

250mm

300mm

25.1

25.1

50.5

50.5

50.5

64.0

77.5

91.0

119.0

166.1

217.5

268.5

319.5

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

9.0

9.0

12.0

12.0
Standard Material: 316

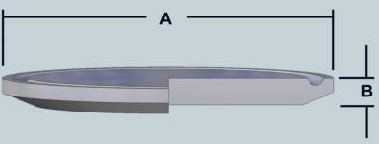

Ferrule Polycarbonate Lens Dims

SIZE

A

B

25mm

31mm

38mm

50mm

63mm

76mm

101mm

150mm

200mm

250mm

300mm

50.5

50.5

50.5

64.0

77.5

91.0

119.0

166.1

217.5

268.5

319.5

50.5

50.5

50.5

64.0

77.5

91.0

119.0

166.1

217.5

268.5

319.5

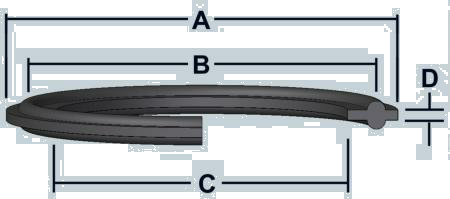

FERRULE SEAL DIMENSIONS

SIZE

A

B

C

D

25mm

31mm

38mm

50mm

63mm

76mm

101mm

150mm

200mm

250mm

300mm

50.5

50.5

50.5

64.0

77.5

91.0

110.0

166.1

217.5

268.5

319.5

43.5

43.5

43.5

56.5

70.5

83.5

119.0

157.0

207.2


308.8

22.2

28.6

34.9

47.6

60.3

73.0

98.4

149.2

200.0

250.8

301.6

2
